VUEPRO

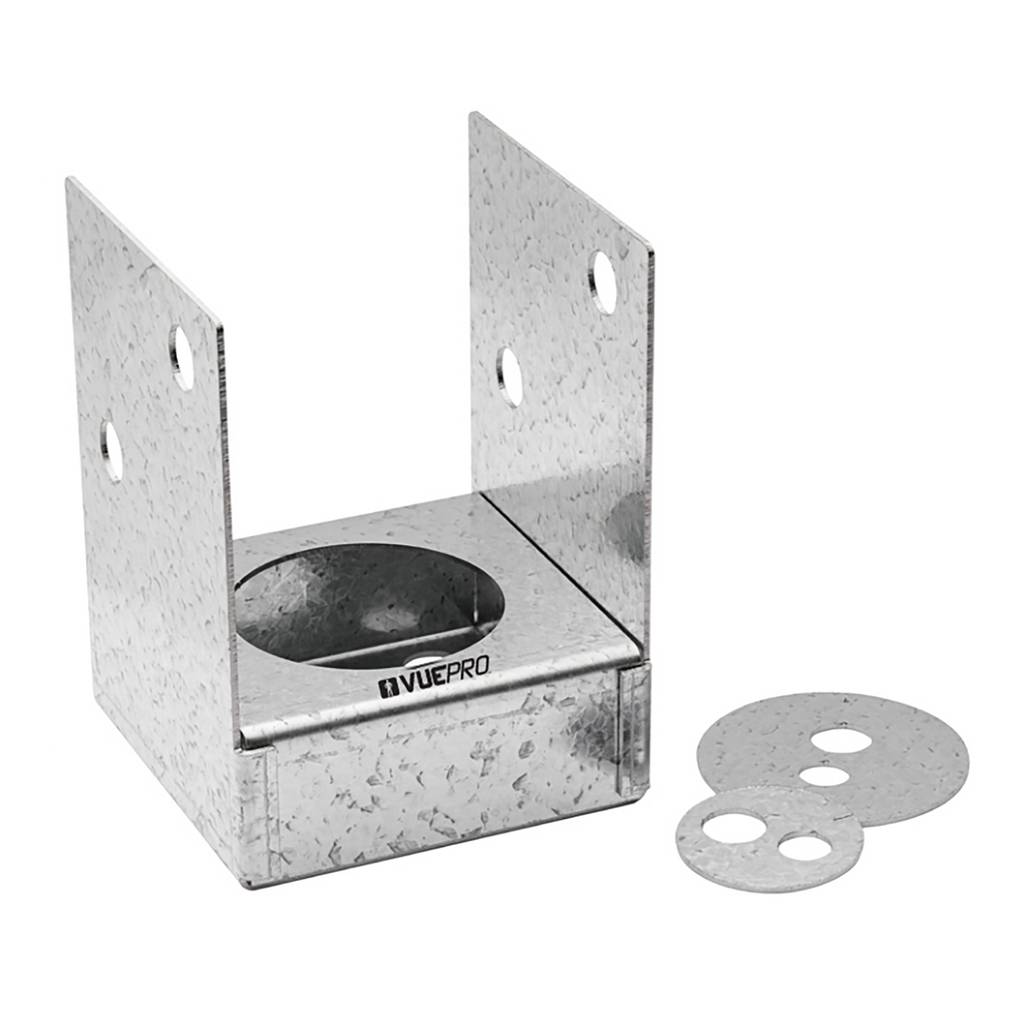

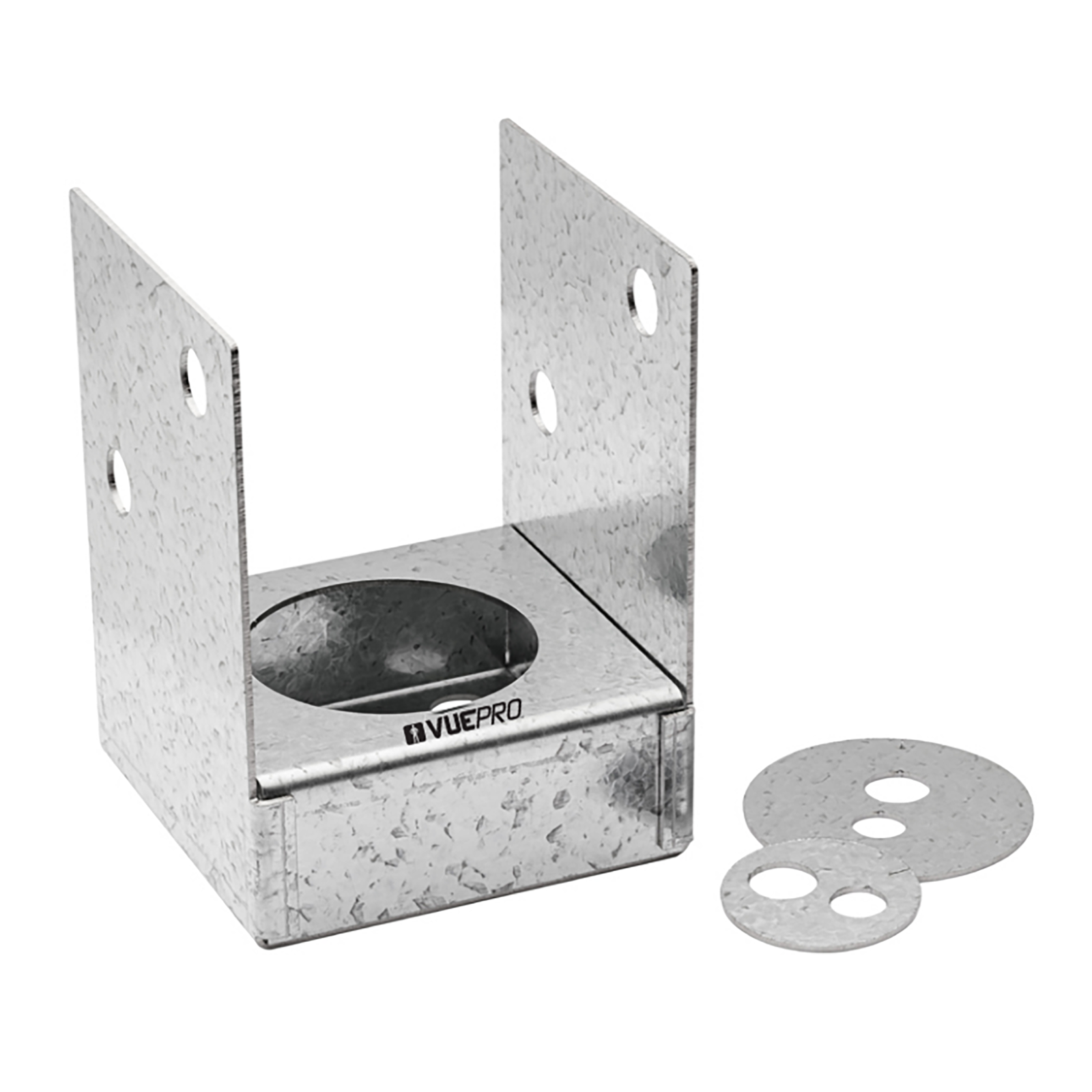

VUEPRO 90mm Galvanised Tradies Bolt Down Post Support

I/N: 0182347

FJD $11.42

You might also like

Features
  • Improved cap design – concealed or open assembly options
  • Galvanised finish for durability and long-life
  • M10 & M12 Bolt Hole Options in Base
  • Australian Made - High quality, peace of mind, and supporting Aussie jobs
  • Economical price point

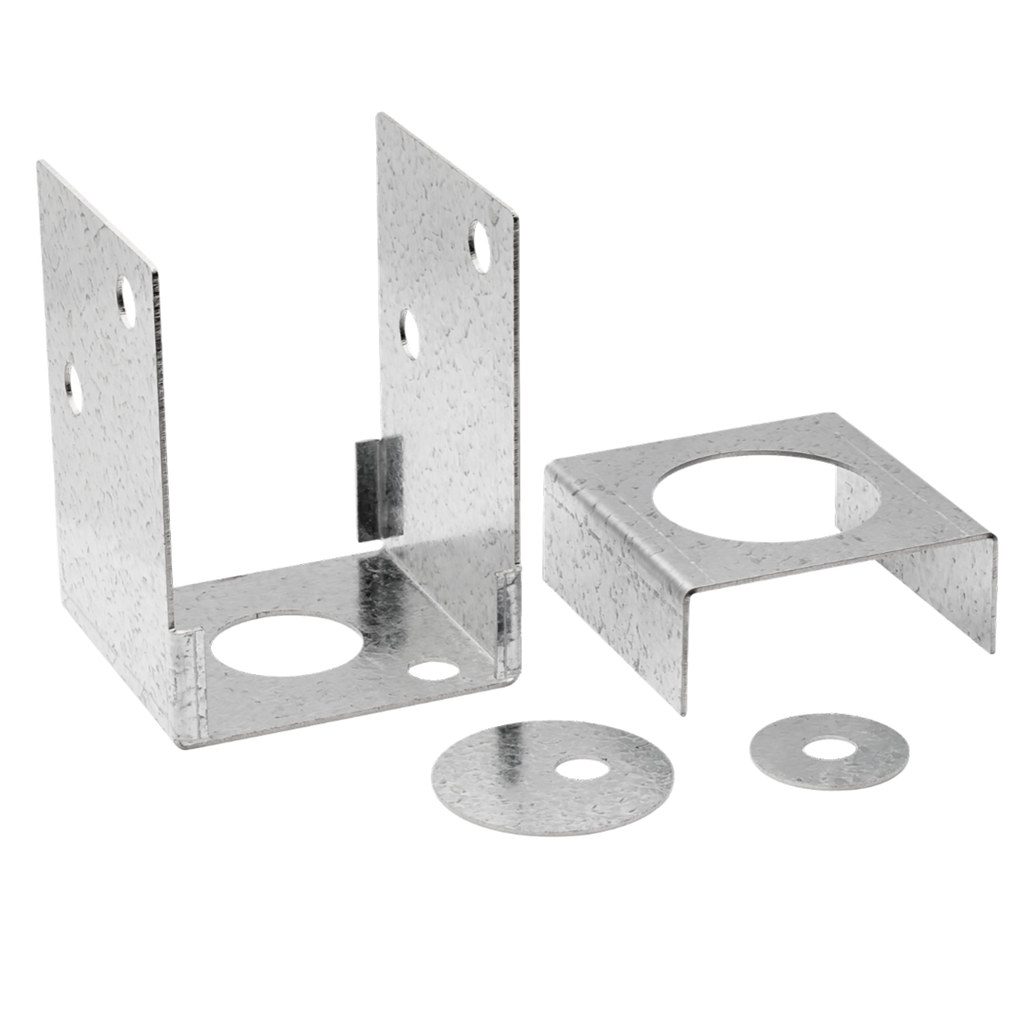

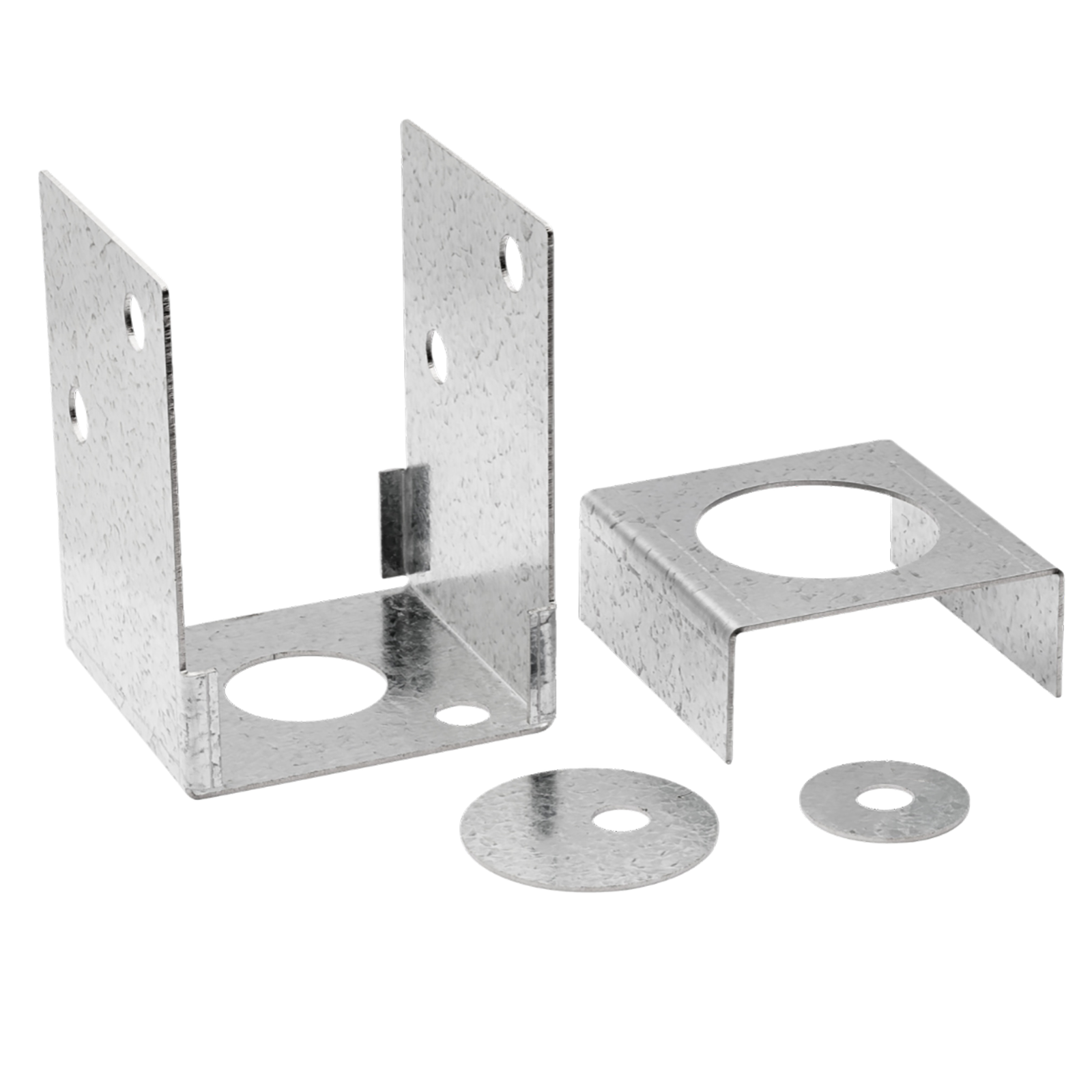

VUEPRO Tradies' Bolt Down Post Support is an economical timber bolt down alternative to the standard bolt down post support, featuring a newly designed and engineered body. Ideal for bolting down timber posts, the adjustable cap allows the post support to switch between easy access and concealed modes.VUEPRO Tradies' Bolt Down Post Supports are manufactured out of G300 Z275 in 1.5mm plate thickness.Fasteners Required:Saddle: 2x Zinc-Nickel Coated VUEPRO Concealed Thread Bolt or appropriate M12 bolts with hex nutsBase: (Fixing Style 1: 2x M12 concrete bolts or equivalent OR Fixing Style 2: 1x M12 concrete bolt fastened with supplied washers OR Fixing Style 3: Combination of piror methods using 3x M12 concrete bolts with supplied washers)SOLD SEPARATELY:I/N: 0182344VUEPRO M12 90 - 110mm Heavy Duty Concealed Thread Bolt - 2 Pack
Specifications

Dimensions

Width Height Length
Product 100 mm 128 mm 100 mm
Package 95 mm 130 mm 95 mm

Weight

Easy to carry

Total Weight: 0.5kg
