PRYDA

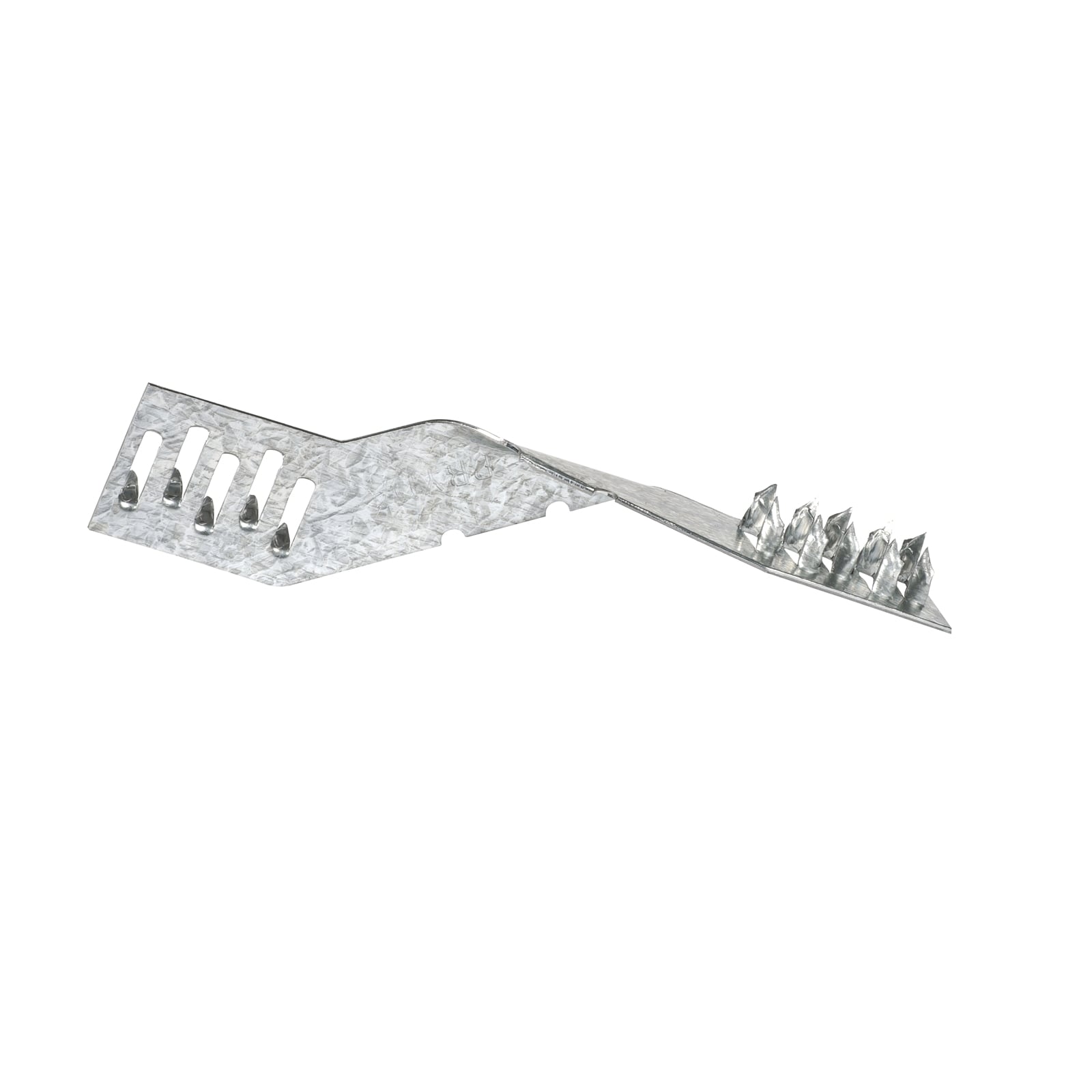

Pryda Truss Tie 117 x 25mm

I/N: 1070020

FJD $1.62

You might also like

Features
  • Quick and easy to install
  • Made from Galvabond® sheet steel for high resistance to corrosion
  • Satisfies the minimum specification of clause 1.15 of AS1684 part 2 and 3, and clause 1.14 of AS1684.4.
Designed to tie down roof trusses or rafters to a timber top plate. This product has preformed teeth that allow it to be hammered in without nails. If additional uplift capacity is required, then two 35 x 3.15 mm galvanised Pryda Timber Connector Nails can be added at each end (sold separately).
Specifications

Dimensions

Width Height Length
Product 117 mm 25 mm 3 mm
Package 150 mm 160 mm 280 mm

Weight

Easy to carry

Total Weight: 0.024kg
