KINCROME

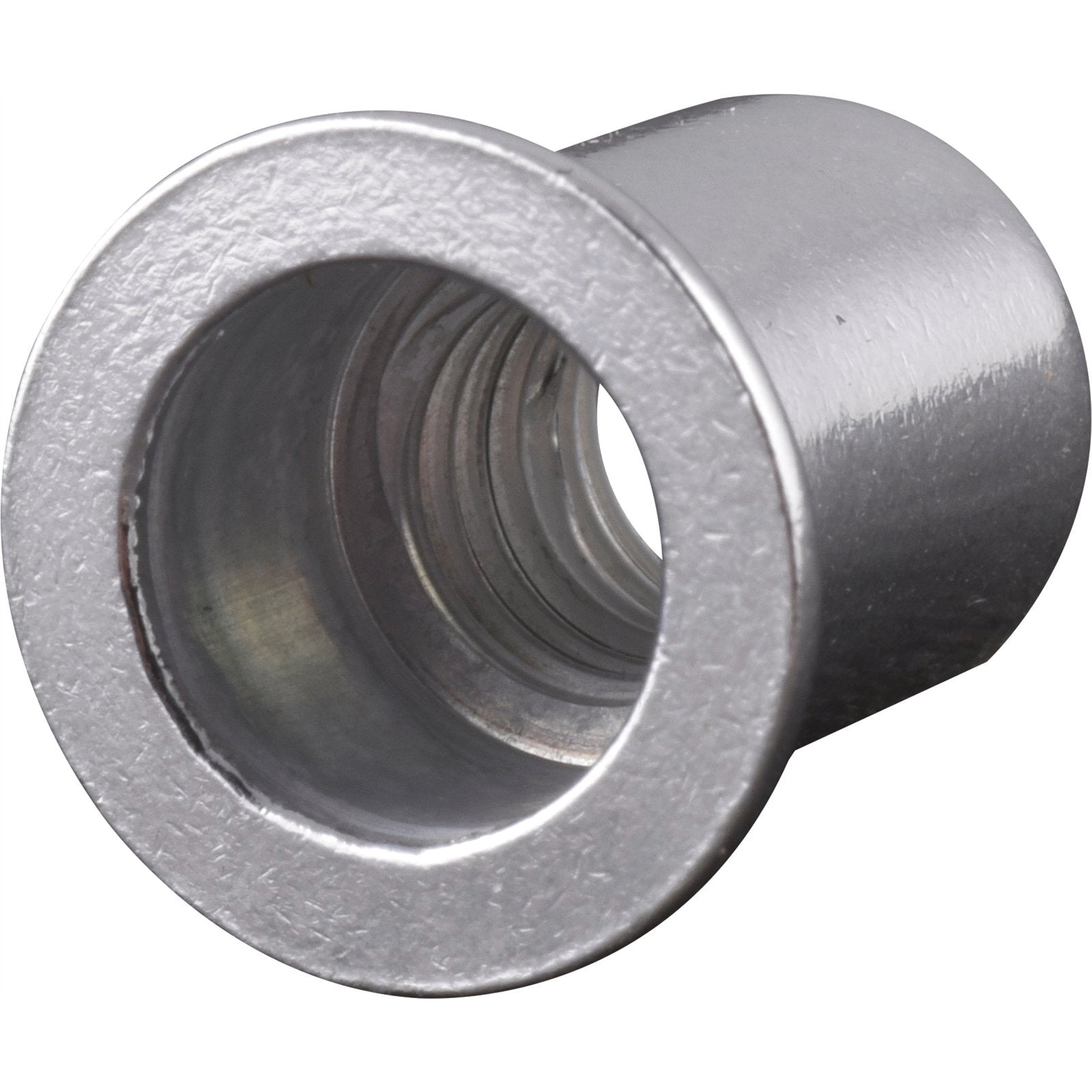

Kincrome M3 20 Piece Rivnut Set

I/N: 5910347

FJD $15.13

You might also like

Features
  • Zinc Coated Steel
  • 20 Piece Packs
  • Drill Bit Required : 5mm
The Blind Nut Rivnut Set is not your typical riveter. Instead of using a rivet to combine 2 pieces of say sheet metal when working with a small straight rivet, this alternative "blind nut" riveter works in an entirely different fashion. The riveter users threaded "rivet nuts", of which are a small round steel component with an internal thread. The user will typically drill out a hole, then insert a rivnut as supplied in these packs onto the tip of the mandrel/rivet gun, then adjust to suit, finally shooting the rivnut into place. The rivet gun will crimp the rivnut and secure tight. Now the user has a firm and secure thread to attach a bolt for any purpose. The rivnut packs come in 20 and 10 piece packs, are made from zinc coated steel and are available in M3,4,5,6,8,10.Rivnut Pack - 20 pieces includedZinc Coated SteelHead Diameter (mm) : 7.9Head Height (mm): 0.85Length (mm): 10Diameter (mm): 4.9Thread Size (mm): M3 x 0.5Grip Range (mm): .25 - 2.00Hole Size (mm): 5
Specifications

Dimensions

Width Height Length
Product 10 mm 0.9 mm 12.5 mm
Package 44 mm 19 mm 94 mm

Weight

Easy to carry

Total Weight: 0.001kg
