KINCROME

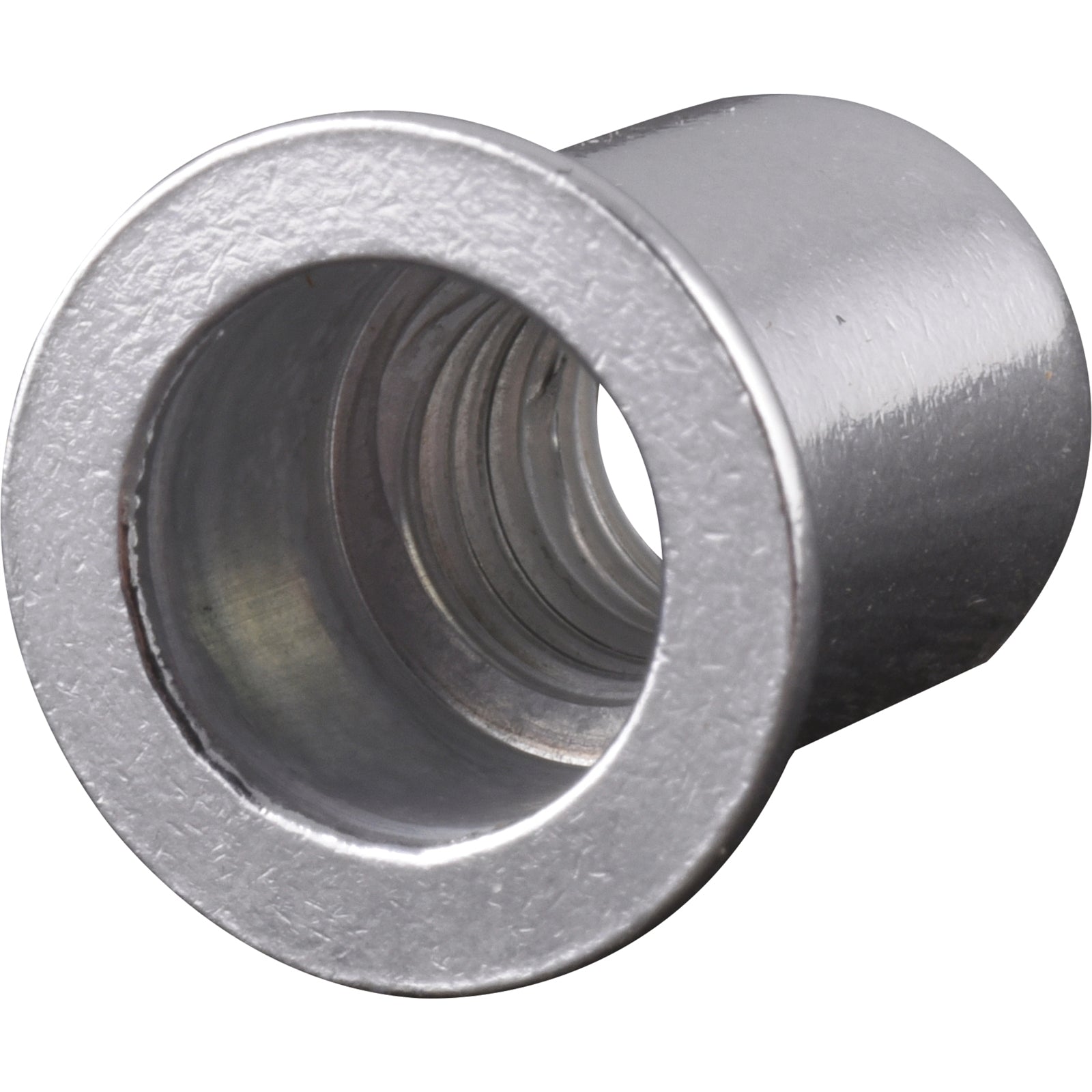

Kincrome M5 20 Piece Rivnut Set

I/N: 5910350

FJD $17.50

You might also like

Features
  • Zinc Coated Steel
  • 20 Piece Packs
  • Drill Bit Required : 7mm
  • M5

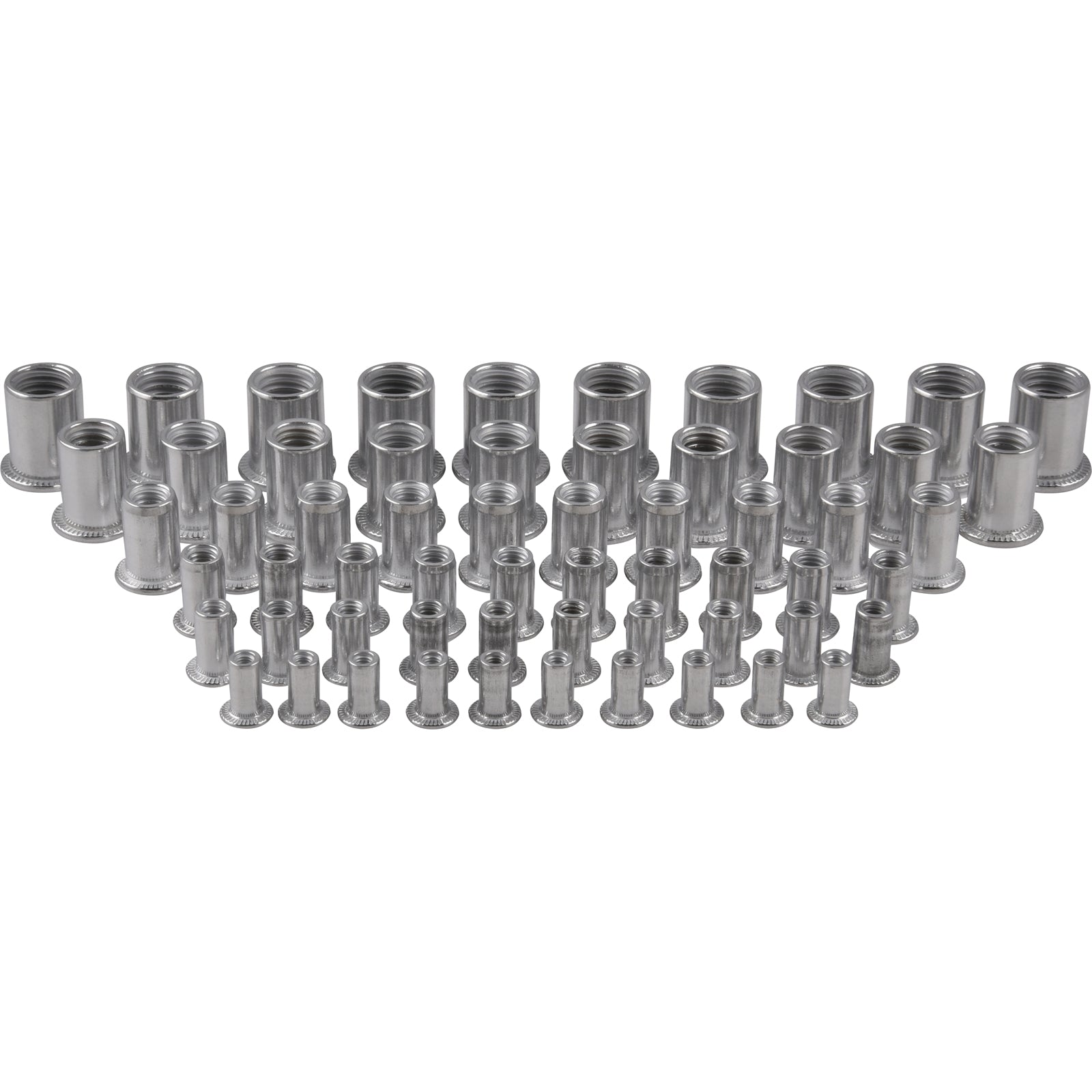

The Blind Nut Rivnut Set is not your typical riveter. Instead of using a rivet to combine 2 pieces of say sheet metal when working with a small straight rivet, this alternative "blind nut" riveter works in an entirely different fashion. The riveter users threaded "rivet nuts", of which are a small round steel component with an internal thread. The user will typically drill out a hole, then insert a rivnut as supplied in these packs onto the tip of the mandrel/rivet gun, then adjust to suit, finally shooting the rivnut into place. The rivet gun will crimp the rivnut and secure tight. Now the user has a firm and secure thread to attach a bolt for any purpose. The rivnut packs come in 20 and 10 piece packs, are made from zinc coated steel and are available in M3,4,5,6,8,10.M5 Rivnut Pack - 20 pieces includedZinc Coated SteelHead Diameter (mm) : 10.0Head Height (mm): 0.9Length (mm): 12.5Diameter (mm): 6.8Thread Size (mm): M5 x 1.0Grip Range (mm): .25 - 3.00Hole Size (mm): 7
Specifications

Dimensions

Width Height Length
Product 40 mm 20 mm 70 mm
Package 44 mm 20 mm 95 mm

Weight

Easy to carry

Total Weight: 0.001kg
