KINCROME

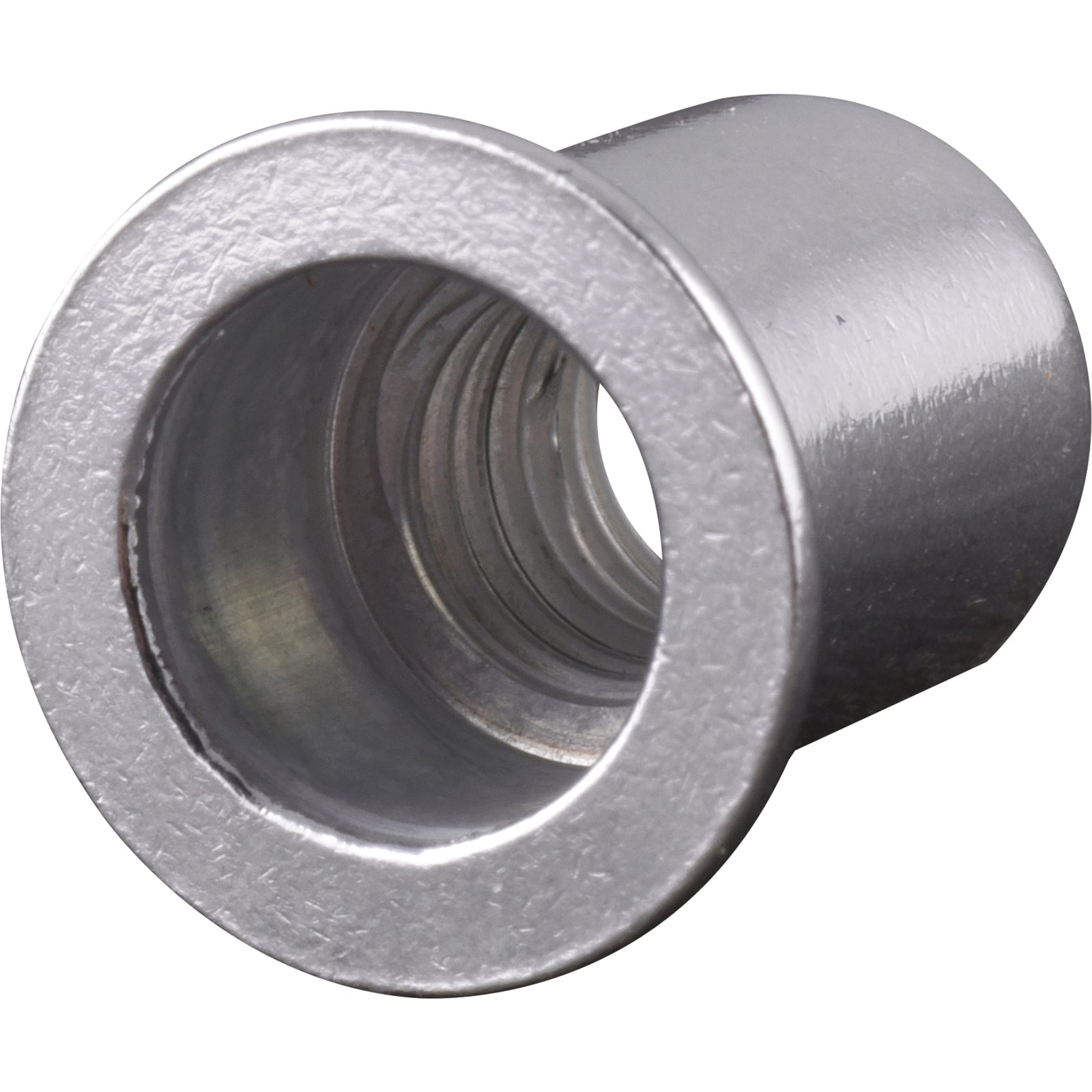

Kincrome M10 10 Piece Rivnut Set

I/N: 5910353

FJD $20.48

You might also like

Features
  • Zinc Coated Steel
  • 10 Piece Packs
  • Drill Bit Required : 13mm
  • M10

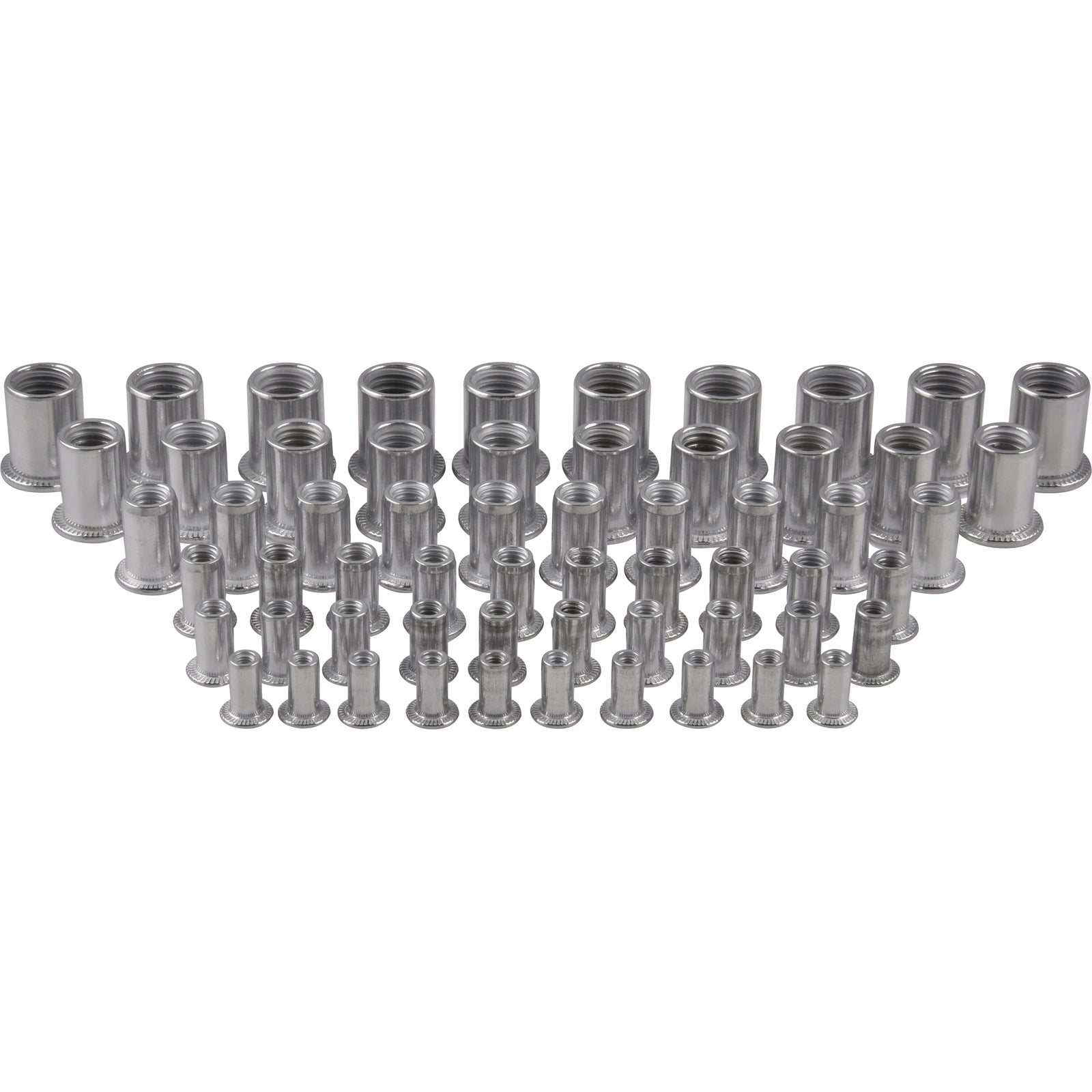

The Blind Nut Rivnut Set is not your typical riveter. Instead of using a rivet to combine 2 pieces of say sheet metal when working with a small straight rivet, this alternative "blind nut" riveter works in an entirely different fashion. The riveter users threaded "rivet nuts", of which are a small round steel component with an internal thread. The user will typically drill out a hole, then insert a rivnut as supplied in these packs onto the tip of the mandrel/rivet gun, then adjust to suit, finally shooting the rivnut into place. The rivet gun will crimp the rivnut and secure tight. Now the user has a firm and secure thread to attach a bolt for any purpose. The rivnut packs come in 20 and 10 piece packs, are made from zinc coated steel and are available in M3,4,5,6,8,10.M10 Rivnut Pack - 10 pieces includedZinc Coated SteelHead Diameter (mm) : 16.4Head Height (mm): 1.5Length (mm): 17Diameter (mm): 12.8Thread Size (mm): M10 x 1.5Grip Range (mm): .1.00-3.50Hole Size (mm): 13
Specifications

Dimensions

Width Height Length
Product 16.4 mm 12.8 mm 17 mm
Package 48 mm 32 mm 95 mm

Weight

Easy to carry

Total Weight: 0.001kg
